- Auxplasmatic CO.,LTD.
- coco20.xu@gmail.com
- www.auxplasmatic.com
- Product Origin:Dongguan, China
- Item No.:VCG-100
- Shipping Port:Shenzhen port
- Color:Blue
- Lead Time:15 days
- Payment:30% TT deposit, 70% TT before delivery
- Price:$899/1999

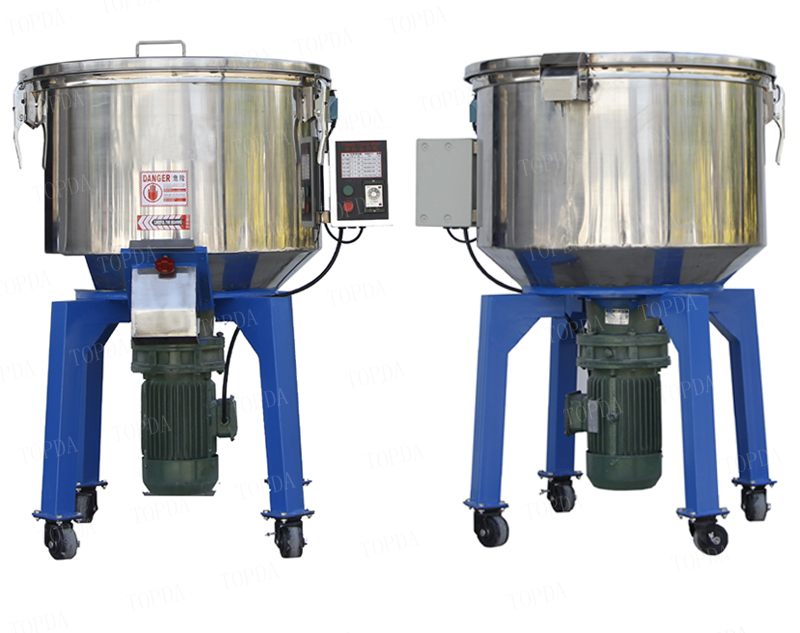

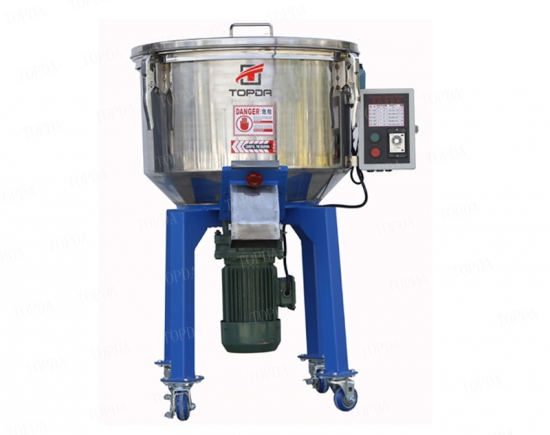

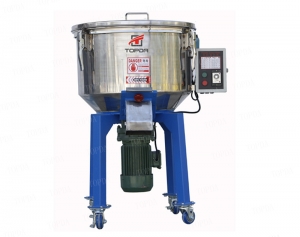

Auxplasmatic SMALL VERTICAL PLASTIC MIXER BLENDER MACHINE
APPLICATION: Plastic mixer suits for plastic raw material & color mixing, virgin, regrind & master batch mixing
Features:
1. Auxplasmatic SMALL VERTICAL PLASTIC MIXER is with wheels , very easy to move;
2. Auxplasmatic SMALL VERTICAL PLASTIC MIXER tank and agitating blades are made of stainless steel;
3. Mixing blades can be easily removed for cleaning;
4. Driven directly by motor to enable high speed and high efficiency for mixing;
5. Automatic stopping setting ,0-30 minutes adjustable;
6. Overload protection device for safe operation.
Specification:
| Model | Capacity(KG) | Power(KW) | Rotating Speed(RPM) | Dimensions(MM) |
| VCG-50 | 50 | 1.5 | 62 | 830*790*960 |
| VCG-100 | 100 | 3 | 62 | 960*860*1180 |
| VCG-150 | 150 | 4 | 62 | 1170*890*1360 |
| VCG-200 | 200 | 5.5 | 62 | 1190*1120*1430 |
| VCG-300 | 300 | 7.5 | 62 | 1330*1270*1700 |
