- Auxplasmatic CO.,LTD.
- coco20.xu@gmail.com
- www.auxplasmatic.com
- Product Origin:Dongguan, China
- Item No.:AL-300G
- Shipping Port:Shenzhen port
- Color:Blue
- Lead Time:7 days
- Payment:30% TT deposit, 70% TT before delivery
- Price:$299/1999

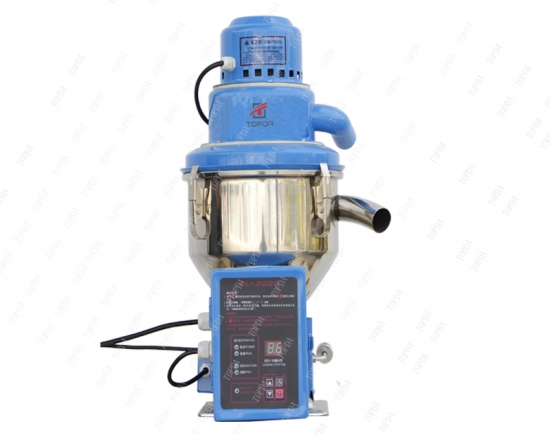

Auxplasmatic PLASTIC AUTOMATIC FEEDER LOADER


APPLICATION: automatic feeder loader to transfer small pvc pp pe abs granules and pellets
Features:
1. Easy to install and operate;
2. Motor automatic protection system with alarm for overload or lack material;
3. Separated filter device ,easy to clean;
4. Stainless steel hopper.
Specification:
| Model | AL-300G | AL-400G | AL-700G | AL-800G | AL-800G | AL-880G | AL-880G | AL-880G |
| Motor | Carbon brush | Induction | Carbon brush | Induction | Induction | Induction | Induction | Induction |
| 1Ф1.1KW | 3Ф1.1KW | 1Ф1.1KW | 3Ф1.1KW | 3Ф1.5KW | 3Ф1.5KW | 3Ф2.2KW | 3Ф3.75KW | |
| Conveying capacity | 200KG/H | 200KG/H | 200KG/H | 300KG/H | 300KG/H | 550KG/H | 550KG/H | 550KG/H |
| Loading capacity | 6-8M | 6-8M | 6-8M | 8-10M | 8-10M | 8-10M | 8-10M | 8-10M |
| Static distance | 1500mm/H2O | 1500mm/H2O | 1500mm/H2O | 1800mm/H20 | 1800mm/H20 | 2400mm/H20 | 2400mm/H20 | 2400mm/H20 |
| Reservoir volume | 7.5L | 7.5L | 7.5L | 7.5L | 7.5L | 12L | 12L | 12L |
| Conveying tube inner dim(mm) | Ф38 | Ф38 | Ф38 | Ф38 | Ф38 | Ф38orФ50 | Ф38orФ50 | Ф38orФ50 |
| Main frame Size(mm) | 370*300*550 | 46*38*70 | 46*38*70 | 46*38*70 | 46*38*70 | 46*38*70 | ||
| Hopper Size(mm) | 400*360*600 | 400*360*600 | 400*300*440 | 400*300*440 | 400*300*440 | 400*300*500 | 400*300*500 | 400*300*500 |
| Net Weight | 29KG | 35KG | 70KG | 70KG | 75KG | 80KG | 85KG | 90KG |
Plastic Auto Loader / Feeders for pet pvc granules pp pe pellets Auxplasmatic
Automatic feeder loader to transfer small pvc pp pe abs granules and pellets
Plastic Hopper Dryer Plastic injection molding dryer Dehumidifier Vacuum Drying Machine Auxplasmatic
Plastic injection machine drying machine,extruding machine Nelone PET dehumidifier is to dry PP PE PET granules and pellets . Use with hopper dryer and auto loader together and create a neat and clean molding environment by placing them away from injection machine. Dehumidifiers Mould dryer are suitable to prevent moisture condensation on the mould surface; dryer reduce scraps and granting long life to the mould in the plastic injection moulding plants. hood forinjection or blow moulding machine
Oil Type Mold Temperature Controller For Plastic Injection Molding Auxplasmatic
Auxplasmatic Water and Oil type MTC , mold temperaturer conrol machines For injection machine. Temperature control units for industrial process, single zone or multi zones temperature controllers.
Scroll Water Cold Water Chiller Milk chiller Refrigerated Chillers
Plastic molding small chiller ,Air conditioning, food cooling, priting cooling,milk cooling milk chiller
Plastic High Speed Cooling Color Mixer PVC Powder Mixing Drying Machine Industrial Blender Auxplasmatic
Plastic High Speed Cooling Color Mixer PVC Powder Mixing Drying Machine Industrial Blender Auxplasmatic
Plastic Dehumidifier 3 IN 1 Drying Machine Industrial Dehumidifier Dehumidity Unit
3 in 1 dehumidifier drying Series compact dryer gathers dehumidification, drying and two-stage conveying three functions, is very suitable for drying engineering plastics materials with hygroscopicity such as PA, PC, PBT, PET,etc. Of them is Optics GCD could be used in processing application of lens, LCD backlight board and discs, it has dew-point of below -40℃ under ideal condition. Mould dryer to prevent moisture condensation on the mould surface. Main Applications: - fast moulding cycles for closures - preforms moulding - thin wall containers, pails, etc. - blow moulding - further applications of fast moulding Mould Dryer provide is the optimal solution to improve productivity, reduce scraps and granting long life to the mould. Available 8 models up to 3600 m3/h MD - outlet dew point down to -10°C - dehumidification system based on solid adsorbing dessicants, using a rotor made of active metal silicates - air flow from 280 to 3600 m3/h Options : - air ducts - hood for injection or blow moulding machine - absolute filter
High Speed Plastic Mixer PVC Powder Mixing Machine without Cooling Industrial Blender
High Speed Plastic Mixer
Piston Air Compressor portable Mini air compressor Auxplasmatic
Air Compressor
Plastic Crusher Blade flat blade jaw blade pineapple blade Plastic film agglomerator blade SKD-II 6CRSI material topda
Plastic Crusher Blade flat blade jaw blade pineapple blade Plastic film agglomerator blade SKD-II 6CRSI material topda Please offer your blade drawing we can make any blades for you by different materials.
PVC Pulverizers Machine Plastic Pulverizing Milling Equipment
Auxplasmatic PVC Pulverizers Machine FEATURES: 1. Suits for grinding hard PVC plastic to powder; 2. With dust collection system; SPECIFICATION: MODEL WSM-500 WSM-600 WSM-800 MOTOR 37kw 45kw 75kw BLOWER 3kw 5.5kw 11kw DUST COLLECTOR 9 16 24 TOTAL POWER 42kw 52kw 90.5KW FEED DIAMETER <18mm <18mm <18mm SHAKER DIAMETER 830mm 1060MM 1500MM Powder Size(MESH) 10-80MESH 10-80MESH 10-80MESH PRODUCTION(KG/H) 150-200 200-350 350-450 DIMENSIONS(MM) 2500x2000x3000 3200x2600x3200 3500x2400x4000
