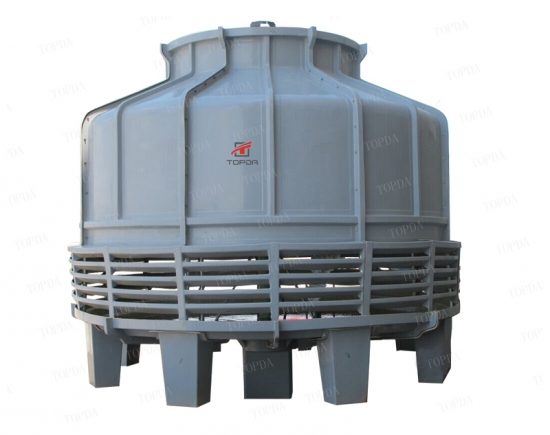

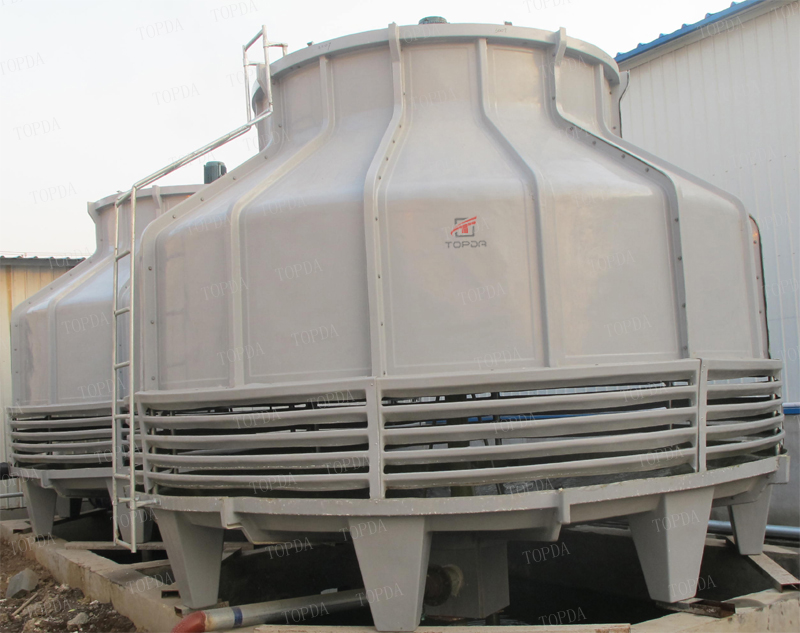

Auxplasmatic Round Type Water Cooling Tower
Offer models from 10ton -500ton, close flow type, FRP tower body
Auxplasmatic Round Type Water Cooling Tower
Features:
1. Auxplasmatic ROUND COOLING TOWER using high quality bearing, with low noise;
2. Auxplasmatic ROUND COOLING TOWER using high quality wear-resistant seal, without leaking;
3. Auxplasmatic ROUND COOLING TOWER body is made of FRP, which is anti-aging, anti-corrosion, without fading and distortion;
4. High temperature pump can be customized by customer.
Specification:
| MODEL | Unit(mm) Abbreviation |
LD-10 | LD-20 | LD-30 | LD-50 | LD-80 | LD-100 | LD-150 | LD-200 | LD-250 | LD-500 |
| Nominal Flow | m³/h | 7.81 | 15.62 | 23.4 | 39.24 | 62.64 | 78.12 | 117 | 156.24 | 195.12 | 392.4 |
| Air Volume | CMM | 85 | 160 | 230 | 330 | 450 | 700 | 950 | 1250 | 1750 | 2600 |
| Motor | KW | 0.18 | 0.55 | 0.75 | 1.5 | 1.5 | 2.25 | 2.25 | 3.75 | 5.5 | 11 |
| Noise Level | Dba | 47 | 50 | 54 | 57.5 | 59 | 60 | 60 | 60 | 55 | 60 |
| Net Weight | KG | 46 | 67 | 116 | 190 | 260 | 500 | 580 | 880 | 1080 | 2900 |
| Wet Weight | KG | 190 | 300 | 530 | 957 | 1280 | 1600 | 1680 | 1980 | 2800 | 5800 |
