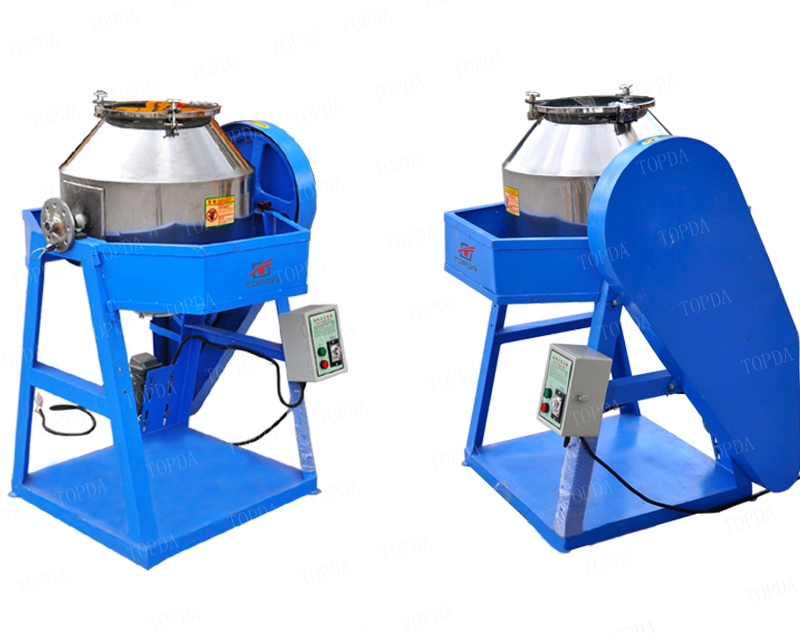

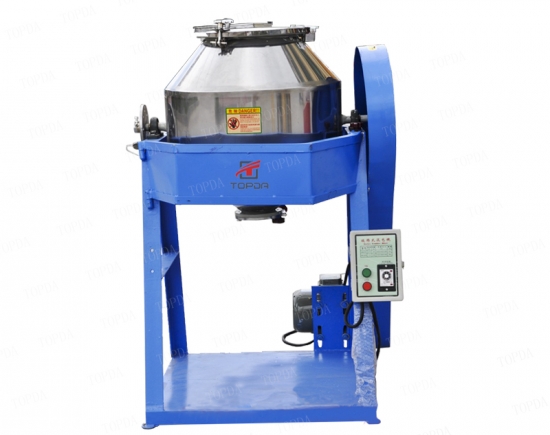

For plastic powder,granules, virgin, regrind & master batch mixing

plastic mixer with drying function

For plastic powder,granules, virgin, regrind & master batch mixing

Air Compressor

Temperature control units for industrial process, single zone or multi zones temperature controllers. temperature controller, with direct or indirect cooling,  for water up to 90°C

Auxplasmatic Dosing Unit Dose of Colors Plastic Color Mixer Machine DOUBLE COLOR UNIT FEATURES: 1.Unit is comprised of standard modules for ease cleaning and disassembly; 2.Dosing screws are chrome plated for durability; 3.Three-tube hopper magnet is equipped at the base of single color doser to absorb metal impurities so to prevent screw of moulding machine from damage; 4.Main material hopper is optional; 5.External signals can be directly interfaced with control box; 6.The current operation mode can be recorded, unaffected by power failure so operation would be returned to normal when power is on; 7.50 units of parameter recipes are available for permanently recording the period of material discharging and finished products weight; 8.Both master blockage and overload can be detected, then machine will halt and sound alarm; 9.Use brushless DC motor and free from maintenance; 10.Blender is a standard equipment for double color doser to make the material evenly mixed. SPECIFICATION: MODEL CVD-12/12 CVD-14/14 CVD-16/16 CVD-30/30 SCREW EXTERNAL DIA(MM) 12 14 16 30 OUTPUT CAPACITY(KGS/H) (0.1-20)*2 (0.2-40)*2 (0.5-64)*2 (0.8-115)*2 STORATE HOPPER(L) 15*2 POWER(KW) 0.24KW,1Φ230/50HZ 60HZ WEIGHT(KGS) 40 44 48 53

Pipe shredder widely used in pipe recycling machine Auxplasmatic we have crusher for crushing pipe and normal materials .  http://www.topdagroup.com/silent-plastic-granulator-plastic-recycling-shredder-sound-proof-topda_p65.html

Soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics

Working video : youtube Auxplasmatic MACHINERY  Plastic PVC pipes crusher factory, PVC tube crushing machine China factory   Application: This crusher is suitable for crushing all kinds of waste plastic films and bags,such as copper wire PP/PE,HDPE,LDPE,LLDPE woven bag and etc.   Special Features: 1.With unique"V-type" designed blade base,blades material can be customized according  to customer requirements. 2.Easy to operate and simple in replacement of cutter blades. 3.Cutter blades are resistant to wear and tear. 4.Removable screen mesh is easy to install or disassemble for cleaning and changing colors. 5.Motor with overload protection device. 6.Using electrical control security design to ensure the safety of your personnels. 7.Standard voltage is 380V 50Hz 3Phase.(Can be customized according to customers’request)  8.Good adaptability and long service life. 9.Noise reduction insulation for machine body or outside sound insulation roon is available by optional order. 10.10HP-100HP optional.(Can be customized according to customers’request)

hopper dryer GHD-U series offter an feeective and low-cost method for plastic material drying, adopts hot air down-blowing and insulated design, to avoid contamination, it is also ideally for use with dehumidifiers to dry engineering plastics. Mould dryer to prevent moisture condensation on the mould surface. Main Applications: - fast moulding cycles for closures - preforms moulding - thin wall containers, pails, etc. - blow moulding - further applications of fast moulding Mould Dryer provide is the  optimal  solution to improve productivity, reduce scraps and granting long life to the mould. Available 8 models up to 3600 m3/h MD -  outlet dew point down to -10°C -  dehumidification system based on solid adsorbing dessicants, using a rotor made  of   active  metal  silicates -  air flow from 280 to 3600 m3/h Options : -  air ducts -  hood for injection or blow moulding machine -  absolute filter
