- Auxplasmatic CO.,LTD.
- coco20.xu@gmail.com
- www.auxplasmatic.com
- Product Origin:Dongguan, China
- Item No.:AL-300G
- Shipping Port:Shenzhen port
- Color:Blue
- Lead Time:7 days
- Payment:30% TT deposit, 70% TT before delivery
- Price:$299/1999

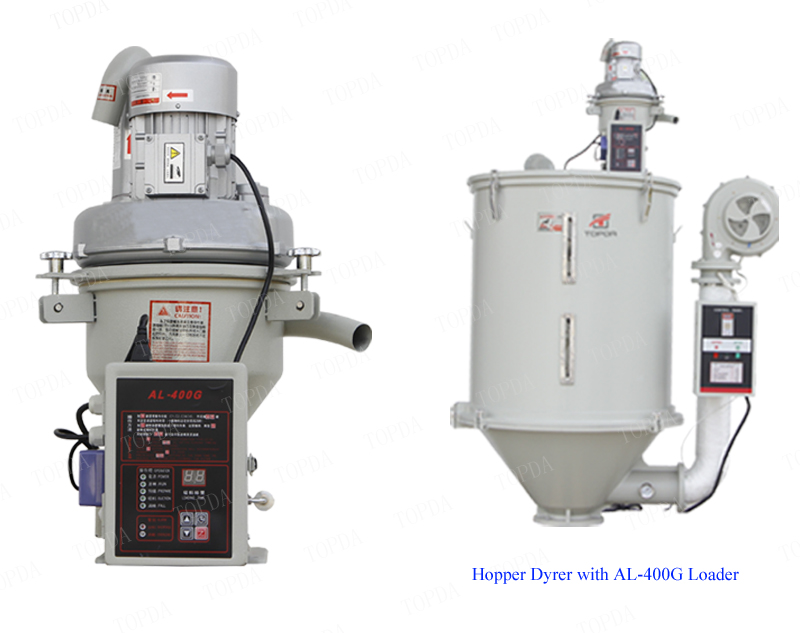

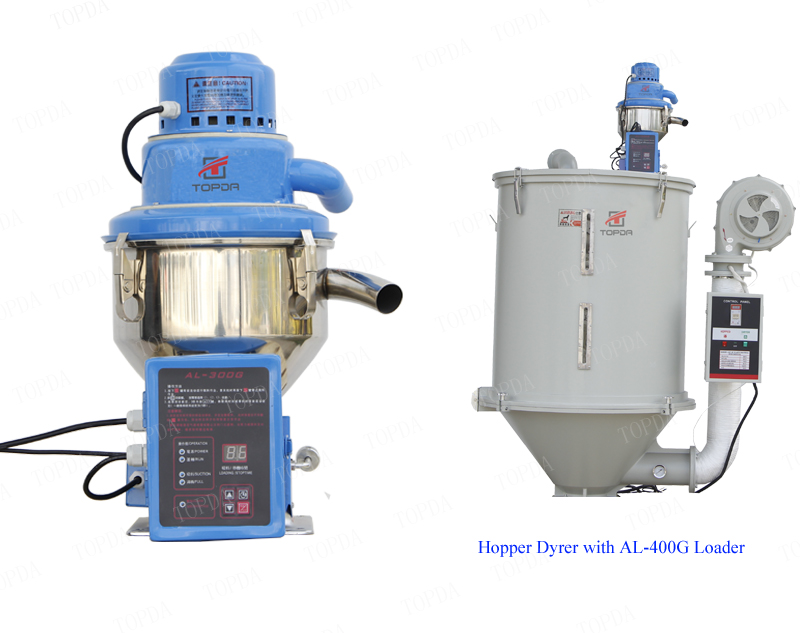

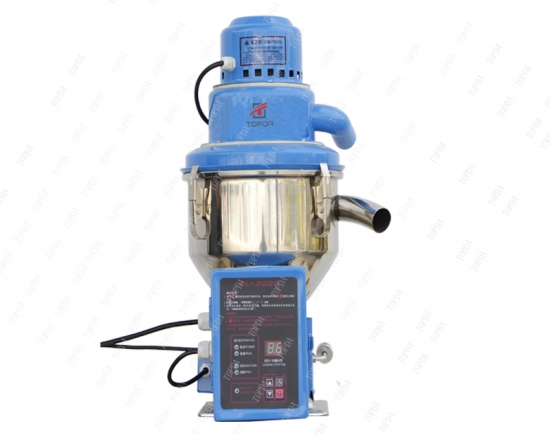

Auxplasmatic PLASTIC AUTOMATIC FEEDER LOADER
APPLICATION: automatic feeder loader to transfer small pvc pp pe abs granules and pellets
Features:
1. Easy to install and operate;
2. Motor automatic protection system with alarm for overload or lack material;
3. Separated filter device ,easy to clean;
4. Stainless steel hopper.
Specification:
Model | AL-300G | AL-400G | AL-700G | AL-800G | AL-800G | AL-880G | AL-880G | AL-880G |
Motor | Carbon brush | Induction | Carbon brush | Induction | Induction | Induction | Induction | Induction |
1Ф1.1KW | 3Ф1.1KW | 1Ф1.1KW | 3Ф1.1KW | 3Ф1.5KW | 3Ф1.5KW | 3Ф2.2KW | 3Ф3.75KW | |
Conveying capacity | 200KG/H | 200KG/H | 200KG/H | 300KG/H | 300KG/H | 550KG/H | 550KG/H | 550KG/H |
Loading capacity | 6-8M | 6-8M | 6-8M | 8-10M | 8-10M | 8-10M | 8-10M | 8-10M |
Static distance | 1500mm/H2O | 1500mm/H2O | 1500mm/H2O | 1800mm/H20 | 1800mm/H20 | 2400mm/H20 | 2400mm/H20 | 2400mm/H20 |
Reservoir volume | 7.5L | 7.5L | 7.5L | 7.5L | 7.5L | 12L | 12L | 12L |
Conveying tube inner dim(mm) | Ф38 | Ф38 | Ф38 | Ф38 | Ф38 | Ф38orФ50 | Ф38orФ50 | Ф38orФ50 |
Main frame Size(mm) | 370*300*550 | 46*38*70 | 46*38*70 | 46*38*70 | 46*38*70 | 46*38*70 | ||
Hopper Size(mm) | 400*360*600 | 400*360*600 | 400*300*440 | 400*300*440 | 400*300*440 | 400*300*500 | 400*300*500 | 400*300*500 |
Net Weight | 29KG | 35KG | 70KG | 70KG | 75KG | 80KG | 85KG | 90KG |
Plastic Auto Loader / Feeders for pet pvc granules pp pe pellets Auxplasmatic
Automatic feeder loader to transfer small pvc pp pe abs granules and pellets
High Speed Plastic Mixer PVC Powder Mixing Machine without Cooling Industrial Blender
High Speed Plastic Mixer
Small Vertical Plastic Color Mixer Blender Stand Mixer Plastic Mixing Machine
For plastic powder,granules, virgin, regrind & master batch mixing
Vacuum Hopper For Plastic Raw Material Hopper Loader Feeder Machine
Vacuum Hopper For Plastic Raw Material Hopper Loader Feeder Machine
Rotary Plastic Mixer /Plastic Color Mixing Blender Machine
Rotary Plastic Mixer /Plastic Color Mixing Blender Machine Auxplasmatic
Water Type Mold Temperature Controller injection mould temperature controller
Temperature control units for industrial process, single zone or multi zones temperature controllers. temperature controller, with direct or indirect cooling, for water up to 90°C
Magnetic Pipes 3pipe 5pipe 7pipe 9pipe
Magnetic Pipes 3pipe 5pipe 7pipe 9pipe
Low Speed Plastic Crusher Middle Speed Plastic Grinder Crushing Recycling Machine
Slow speed crusher is specially designed for crushing of recycled plastic waste generated in the molding process and the gate. use skd-ii blade pineapple blade .
Washing Plastic Crusher Plastic Grinder Recycling Machine With Water Auxplasmatic
Bottle film recycling with washing .
European Hopper Dryers Dehumidifier For Plastic Drying Auxplasmatic
hopper dryer GHD-U series offter an feeective and low-cost method for plastic material drying, adopts hot air down-blowing and insulated design, to avoid contamination, it is also ideally for use with dehumidifiers to dry engineering plastics. Mould dryer to prevent moisture condensation on the mould surface. Main Applications: - fast moulding cycles for closures - preforms moulding - thin wall containers, pails, etc. - blow moulding - further applications of fast moulding Mould Dryer provide is the optimal solution to improve productivity, reduce scraps and granting long life to the mould. Available 8 models up to 3600 m3/h MD - outlet dew point down to -10°C - dehumidification system based on solid adsorbing dessicants, using a rotor made of active metal silicates - air flow from 280 to 3600 m3/h Options : - air ducts - hood for injection or blow moulding machine - absolute filter
