For plastic powder,granules, virgin, regrind & master batch mixing

Plastic and rubber manufacturing, large indoor room cooling, food cooling, priting,electronic productions, electroplating, medical chemistry, ultrasonic cooling

 Air Handling Unit for Room Air Cooling

Air Compressor

Auxplasmatic Plastic Pulverizer Milling Equipment Flour Mill Machine FEATURES: 1. Suits for grinding PP PE PET and Soft PVC plastic to powder; 2. With dust collection system; SPECIFICATION: MODEL/td> SMF-200 SMF-380 SMF-500 SMF-600 SMF-800 BLADE DISK DIAMETER 200MM 380MM 500MM 610MM 800MM BLADE DISK QUANTITY 2PCS 2PCS 2PCS 2PCS 2PCS ROUND SPEED 4500RPM 4500RPM 4500RPM 4200RPM 3700RPM MAIN MOTOR 11KW 30KW 37KW 45KW 55KW BLOWER 2.2KW 3KW 3KW 4KW 5.5KW SHAKER DIAMETER 630MM 830MM 830MM 1060MM 1500MM OUTPUT SIZE 10-80 MESH 140μm-1120μm 10-80 MESH 140μm-1120μm 10-80 MESH 140μm-1120μm 10-80 MESH 140μm-1120μm 10-80 MESH 140μm-1120μm COOLING TYPE AIR AND WATER AIR AND WATER AIR AND WATER AIR AND WATER AIR AND WATER OUTPUT CAPACITY (FOR 30MESH) PVC:100kg PVC:200kg PVC:250kg PVC:350kg PVC:500kg PE:50kg P E:150kg P E:200kg P E:250kg P E:300kg PP:30kg PP:70kg PP:100kg PP:160kg PP:200kg DIMENSION(MM) 2000x1700x2000 2500x2000x3000 2600x2100x3000 2800x2300x3000 3200x2800x3200

Temperature control units for industrial process, single zone or multi zones temperature controllers. temperature controller, with direct or indirect cooling,  for water up to 90°C

hopper dryer GHD-U series offter an feeective and low-cost method for plastic material drying, adopts hot air down-blowing and insulated design, to avoid contamination, it is also ideally for use with dehumidifiers to dry engineering plastics. Mould dryer to prevent moisture condensation on the mould surface. Main Applications: - fast moulding cycles for closures - preforms moulding - thin wall containers, pails, etc. - blow moulding - further applications of fast moulding Mould Dryer provide is the  optimal  solution to improve productivity, reduce scraps and granting long life to the mould. Available 8 models up to 3600 m3/h MD -  outlet dew point down to -10°C -  dehumidification system based on solid adsorbing dessicants, using a rotor made  of   active  metal  silicates -  air flow from 280 to 3600 m3/h Options : -  air ducts -  hood for injection or blow moulding machine -  absolute filter

Soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics

Auxplasmatic PVC Pulverizers Machine FEATURES: 1. Suits for grinding hard PVC plastic to powder; 2. With dust collection system; SPECIFICATION: MODEL WSM-500 WSM-600 WSM-800 MOTOR 37kw 45kw 75kw BLOWER 3kw 5.5kw 11kw DUST COLLECTOR 9 16 24 TOTAL POWER 42kw 52kw 90.5KW FEED DIAMETER <18mm <18mm <18mm SHAKER DIAMETER 830mm 1060MM 1500MM Powder Size(MESH) 10-80MESH 10-80MESH 10-80MESH PRODUCTION(KG/H) 150-200 200-350 350-450 DIMENSIONS(MM) 2500x2000x3000 3200x2600x3200 3500x2400x4000

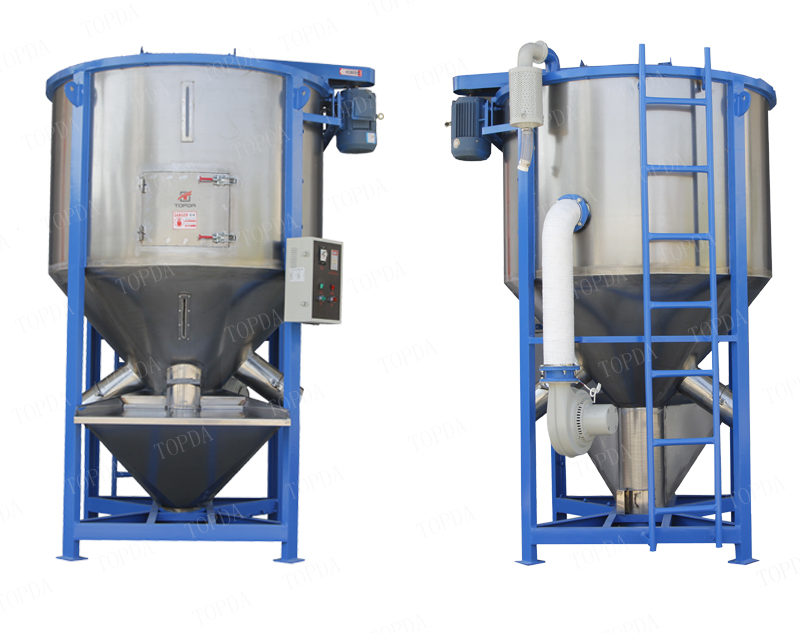

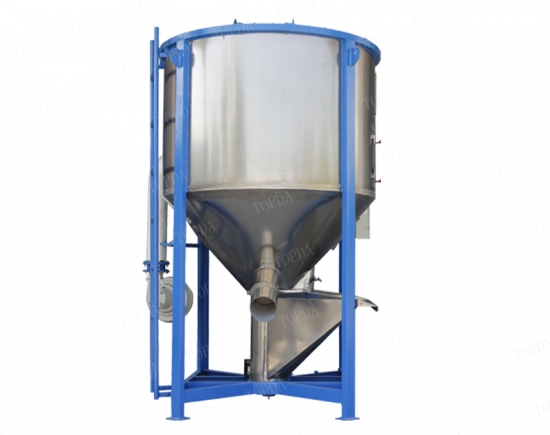

Dosing Unit For plastic material Mixing
